POWDER COATING & SURFACE MODIFICATION
Turbo Mill Coating Machine
EPIC Powder combines advanced powder modification technology at home and abroad, and independently developed UCOAT series continuous modification equipment. The modification rate of vortex mill coating machine is up to 99%, and the product quality is stable.
- The turbo mill coating machine is composed of the frame, body, stator, rotor, filling hopper, bearing seat, and motor. The Turbo mill coating machine has the features of high rotational speed, long service life, convenient maintenance, and high crushing efficiency.
- Heavy calcium carbonate is a kind of energy-saving, green and environmental protection mineral material. Due to its special physical and chemical properties, as well as its low price, and wide sources, it has become one of the main modified powders of Turbo mill coating machines.
Working principle of Turbo mill powder coating machine

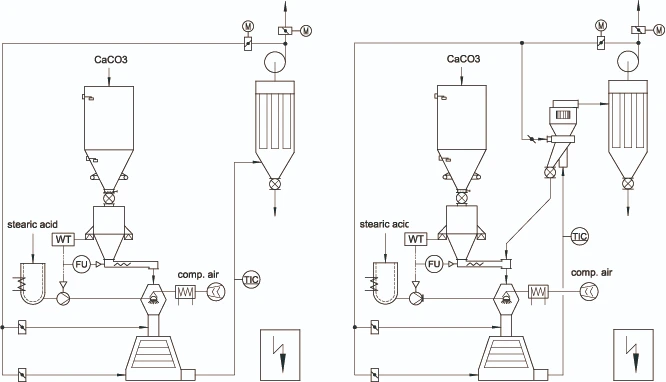

The mineral powder is fed from the top of the modifier, pre-crushed by the upper cover of the rotor and then thrown into the main machine. The material enters the comminution zone between the stator and the rotor. The conical crushing area creates ventilation conditions between the rotor and stator.
Under the combined effect of centrifugal force and suction, the right amount of material impacts the edge of the blade at high speed and there is a fierce collision between the material and the material. Through this repeated impact, collision, the material can achieve the purpose of ultrafine grinding.
Product Parameters
| Model | 300 | 500 | 750 | 1000 | 1250 |
|---|---|---|---|---|---|
| Speed (m/s) | 100-120 | 100-120 | 100-120 | 100-120 | 100-120 |
| Motor Power (kw) | 22 | 45 | 75 | 110 | 132 |
| Blade (layer) | 4 | 4 | 6 | 6 | 6 |
| Fineness (mesh) | 50-2500 | 50-2500 | 50-2500 | 50-2500 | 50-2500 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
